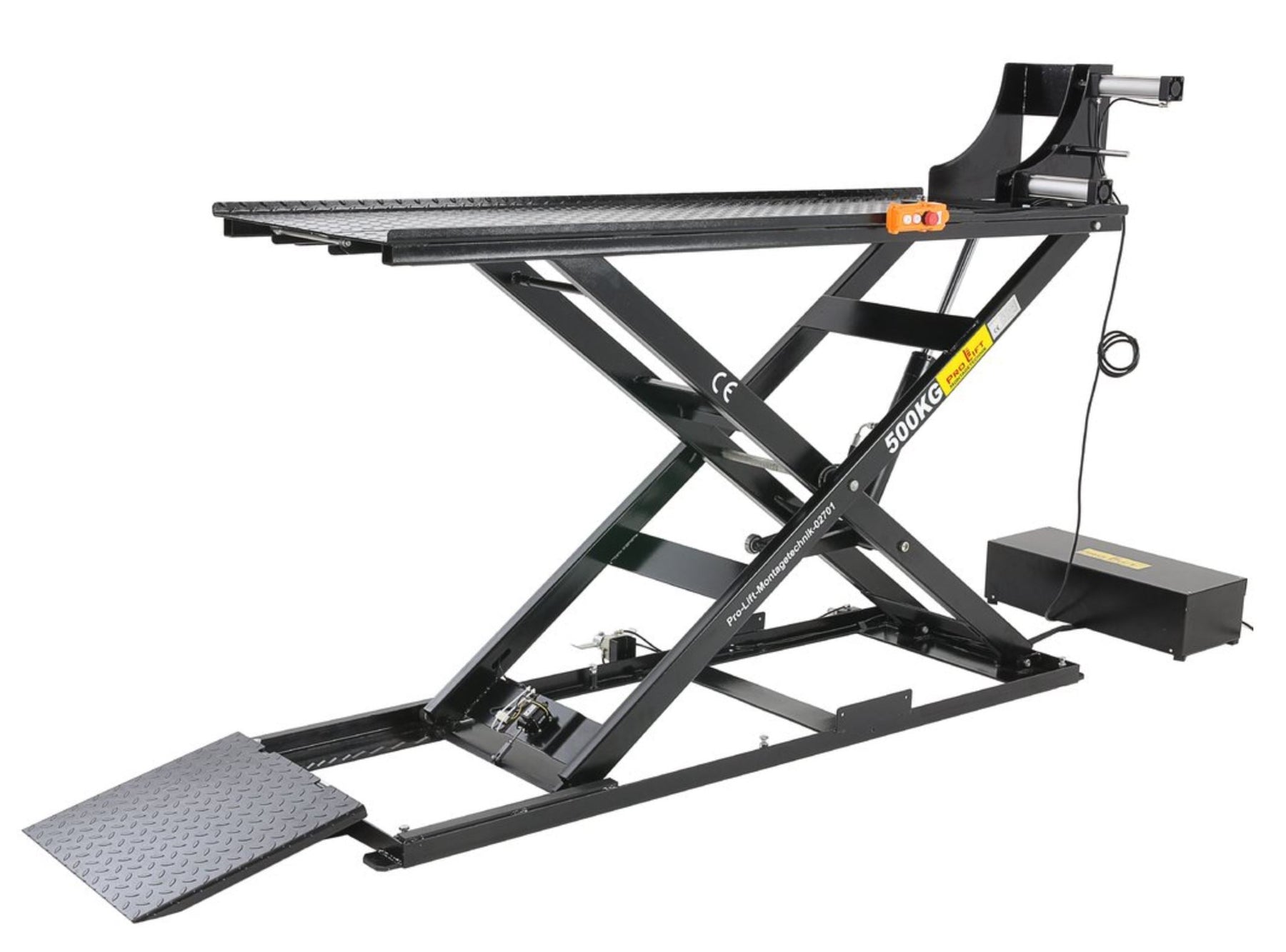

Motorcycle lift scissor lift table 500 kg, 1250 mm lifting height, 230V electric drive
- Lagerräumung – Angebot gültig bis 20. März
- In stock, ready to ship
500 kg Load Capacity
Stable platform for heavy motorcycles & e-bikes
Max. 1250 mm Lift Height
Comfortable working height for service, cleaning & repair
230 V Electric Drive
Plug into socket – lifting & lowering via remote control
Workshop Ready
With ramp & wheel clamp for secure fixing

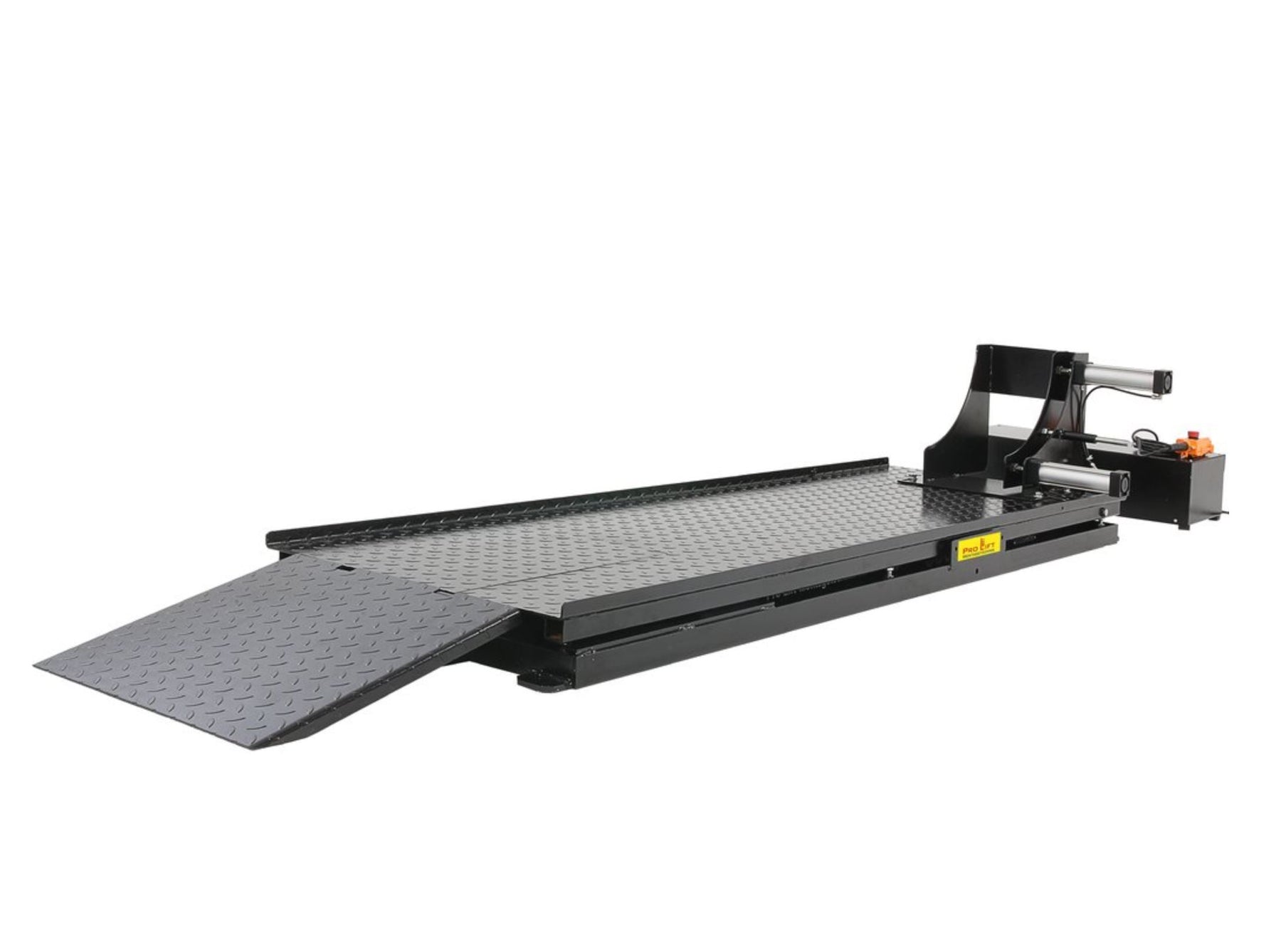

Min. 110 mm Height
Suitable for low motorcycles without scraping
Top Price/Performance Ratio
Professional lift for maintenance & service – no unnecessary extras
This lift has a minimum height of only 110 mm, making it suitable for almost all motorcycles. Even very low bikes can be driven onto the platform without scraping.
It features a powerful electric drive. The hydraulic unit is placed in front of the lift and connected via hydraulic hose.
The hand remote control allows raising and lowering. It also includes an emergency stop switch. A magnet on the back allows flexible placement on the lift.
The loading ramp can be attached or removed at the rear lower end.
The rear section of the platform (560 mm × 250 mm) folds down. When lowering the lift, it automatically folds back and locks itself. This significantly improves wheel installation.
Technical Data
| Load capacity | 500 kg |
|---|---|
| Drive | Electric 230 V · 50 Hz · 0.75 kW |
| Platform length | 2200 mm |
| Platform width | 700 mm |
| Max height | 1250 mm |
| Min height | 110 mm |
| Ramp size (L × W) | 510 mm × 550 mm |
| Fold-down section (L × W) | 560 mm × 250 mm |
| Grease nipples | Important bearings equipped with grease fittings |
| Noise level | < 70 dB |
| Air pressure required | 6–8 bar |
| Max hydraulic pressure | 200 bar |
| Hydraulic hose | G 1/4 |
| Surface | High-quality black powder coating |
Scope of Delivery & Details
With a 285 kg net weight, this lift remains extremely stable.
The high-quality wheel clamp is operated via two double-acting pneumatic cylinders. Opening/closing is controlled by a foot switch. The opening width is 215 mm.
The air connection is located on the lower frame. A quick coupling allows direct use of air tools.
The wheel clamp can be mounted in two positions and adjusted by up to 22 cm continuously. This allows a usable platform length of 2350 mm.
⚠ The motorcycle must always be secured with straps when using the wheel clamp. Rim protection is recommended.
The automatic safety lock engages in 8 steps. It is released electronically when lowering.
Six leveling screws allow precise adjustment. Four floor anchors are included.
The platform is made of checker plate steel for maximum grip.
⚠ Delivery does not include hydraulic oil (approx. 1.5 liters required). Motorcycle not included.
Net weight 285 kg
Shipping weight 324 kg
